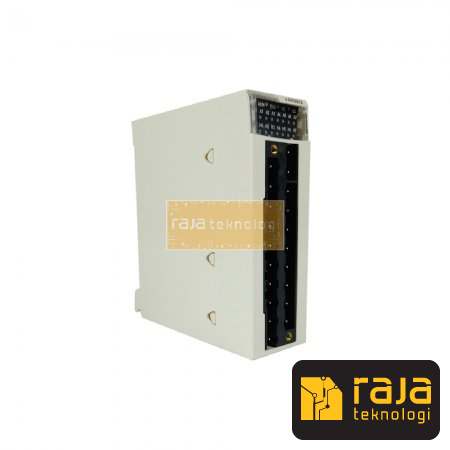

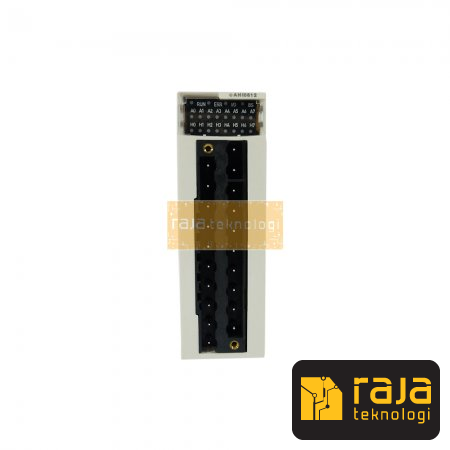

SCHNEIDER BMEAHI0812 8 channels input HART module

analog input module X80 - 8 inputs HART - current Isolated

Rp. 23.095.380

Condition: New

Shipping Weight: 1 kg(s)

Brand: SCHNEIDER

Share:

Main
Range of product Modicon X80
Product or component type Analog input module

Complementary
Application specific I/O HART
Product compatibility BMEP58... processor
BMXFTB20... terminal block
ABE7CPA31
BMEXBP... backplane
ABE7CPA02
ABE7CPA03
Head module BMECRA31210
Electrical connection 20 ways terminal block
Telefast
Isolation between channels Isolated
Analogue input number 8
Analogue input type Current 4...20 mA
Analogue input resolution 15 bits + sign
Input impedance 250 Ohm internally protected resistor
Measurement error 0.15 % of full scale 25 °C
<= 0.3 % of full scale 0...60 °C
Temperature drift 50 ppm/°C
Isolation voltage 1000 V DC for 60 s between channels
1400 V DC for 60 s between channels and ground
1400 V DC for 60 s between channels and bus
Checks Broken wire detection
Topology Point-to-point
Function available I/O mapping
Net weight 0.233 kg

Environment
Ambient air temperature for operation 0…60 °C
Directives 2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
Standards EN 61131-2
EN 61000-6-4
EN 61000-6-2
EN 61010-2-201
8 channels input HART module
