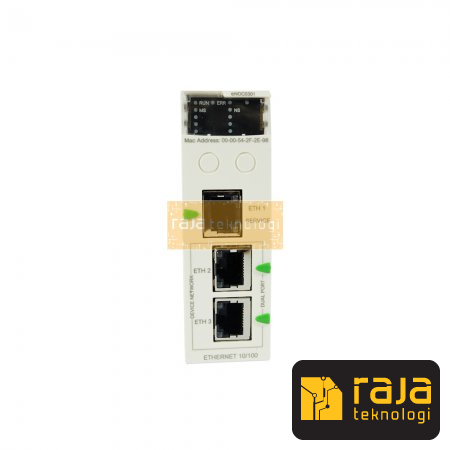

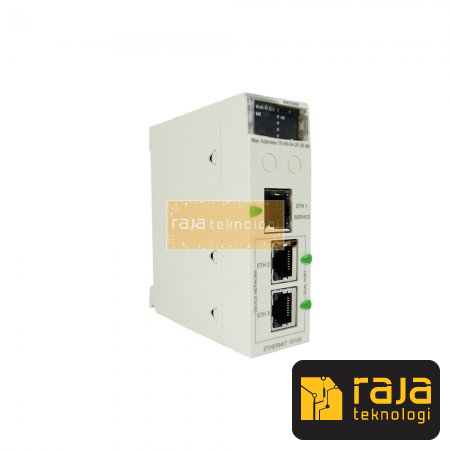

SCHNEIDER BMENOC0301 Ethernet module M580 - 3-port Ethernet communication
Main
| Range of product | Modicon M580 |
| Product or component type | Communication module |
| Product compatibility | BMEXBP... - Ethernet + X-bus rack |
| Concept | Transparent Ready |
Complementary
| Integrated connection type | 3 Ethernet, connector type: RJ45, transmission rate: 10/100 Mbit/s, transmission mode: double shielded twisted pair |
| Web server | Basic |
| Transmission support medium | Ethernet backplane |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Supply | Internal power supply via rack |
| Module format | Standard |
| Current consumption | 555 mA at 3.3 V DC |
| Net weight | 0.2 kg |
Environment
| Ambient air temperature for operation | 0…60 °C |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | UL |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive |
| Standards | EN 61131-2 EN 61000-6-4 EN 61000-6-2 EN 61010-2-201 |
| Local signalling | 1 LED (green)processor running (RUN): 1 LED (red)processor or system fault (ERR): 1 LED (green/red)ETH MS (Ethernet port configuration status): 1 LED (green/red)Eth NS (Ethernet network status): |
Ethernet module M580 - 3-port Ethernet communication
